Automatic bollard installation, is a relatively complex work, especially hydraulic and pneumatic types of automatic bollards, the installation process will be more complex, in addition to the need to dig pits wiring, etc., but also need to make an independent drainage system, in some high-latitude or high-altitude winter temperatures are low in the region, in order to hydraulic bollards can be used normally in low-temperature conditions, you need to increase the heating device. When it is necessary to install automatic bollards before the first to determine the installation location, to determine that this location can be installed, it is necessary to pay attention to whether there is an underground pipeline network, such as water supply pipe or gas pipeline or government fibre optic, etc., can be detected with a metal detection tool, as long as it is determined that there is enough space under the ground to be able to install, you can carry out the construction of the excavation. When doing this preparation, you need to determine the distance of the location where the bollards are to be installed from the location where the power is to be taken, which is used to determine the length of the cables connecting the bollards to each other.

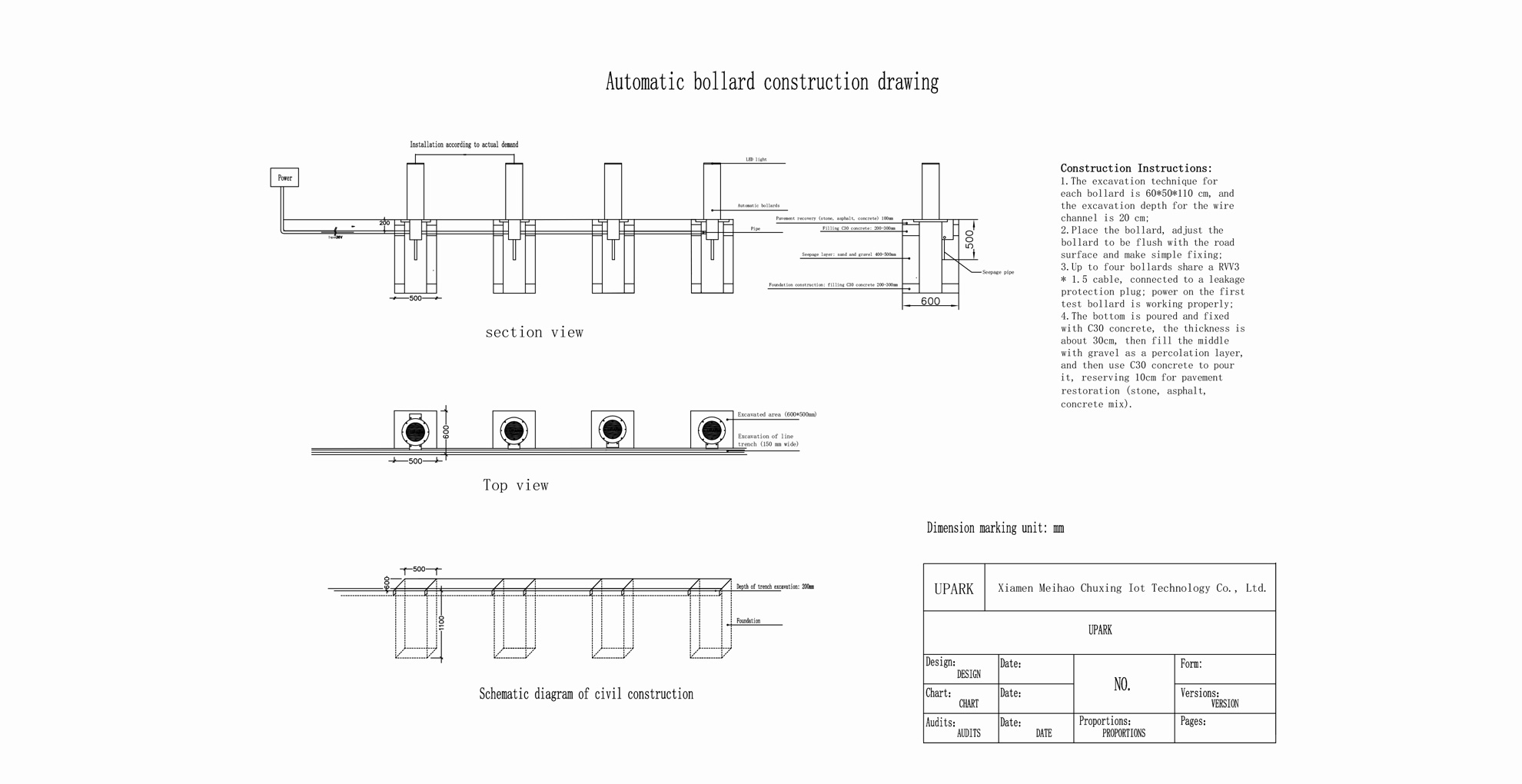

After all the preparatory work has been done, the bollards are ready to be installed. There are several steps involved in installing the bollards: Firstly, depending on the number of UPARK automatic bollards to be installed, excavate the appropriate number of pits. Note that the depth of the pit is about 1.1 metres and the depth of the slots for the side alignment is about 15 cm, without the need for a drainage system. Second, take out the UPARK automatic bollards ready to be installed, first of all the bollards energised, to test whether all the bollards can be used normally, at the same time, if the bollards need to be controlled in groups, you can first of all according to the results of the energised test, in accordance with the need for grouping to be placed. Thirdly, put all the automatic bollards into the pits dug in advance, and use tools such as a level and a rope to ensure that each bollard is on a straight line and that the height hydraulics are consistent. Fourthly, before backfilling is carried out, a final energisation test of the condition of the bollards is required to ensure that there are no problems before the pit can be backfilled and restored. If there is the use of steel welding, before welding to make sure that all equipment status is normal. Fifth, all the bollards are backfilled with soil and concrete is completed, the road surface to do a good job of restoring the perimeter of the set warning signs, because the backfilled concrete needs time to solidify, so before the concrete is completely solidified, it is best not to have a vehicle to run over it, which may cause settlement, may lead to such a part of the accumulation of water, long-term accumulation of water will be bollards caused by damage. When installing automatic bollards, all cables need to be protected with PVC pipes, so that it is not only conducive to the maintenance of the equipment in the later stage, but also better to protect the cables themselves. Different bollard installation requirements are not the same, if you do not know how to install automatic bollards, you can contact us, we will provide technical guidance, if the installation of UPARK brand automatic bollards, we will provide the corresponding model of the construction of technical instructions and CAD drawings.
